Bulk SMS modem

What is a modem used for?

A modem is a hardware device used to facilitate communication between a computer and the internet by modulating and demodulating data signals. Its primary purpose is to enable the transmission of digital information over analog lines for efficient internet connectivity.

What is a bulk SMS modem?

A bulk SMS modem is a GSM device designed for sending large volumes of text messages.

How does sending SMS through a bulk SMS modem work?

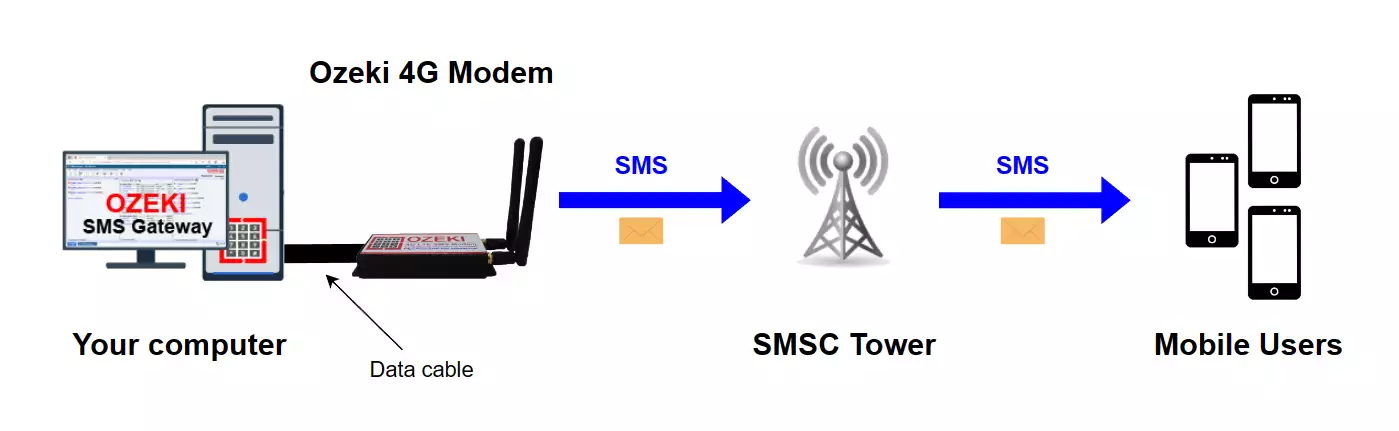

This Bulk SMS sending process allows the transmission of mass SMS messages from your device to your target audiences. To be able to send high-volume text messages through Ozeki SMS Gateway, you need install the Ozeki SMS Gateway, an Ozeki bulk SMS modem device that allows the transmission, and the recipient's mobile phone number. The computer with the Ozeki SMS Gateway application is responsible for compiling the message. It requires the recipient's phone number and the text body. When composing the message is done, the Ozeki bulk SMS modem will send the message to the recipient directly while establishing communication with a service provider. When the service provider ensures the delivery of the message, it will appear on the designated phone number. By receiving the SMS message, it completes the bulk SMS sending process.

Can we send bulk SMS with 4G modem?

Yes, a bulk SMS modem uses technologies like 4G GSM or 4G LTE to ensure fast and reliable transmission, making it a valuable tool for businesses and individuals involved in mass messaging for marketing or information dissemination.

How to send SMS with a Bulk SMS modem (Easy guide)

To send SMS with a Bulk SMS modem:

1. Place the SIM card into the modem
2. Attach the antenna to the modem
3. Link the modem to your PC using a USB cable
4. Run the Ozeki SMS Gateway
5. Execute the automatic detection for the SMS modem
6. Enter the phone number for the SMS
7. Compose the text for the SMS message
8. Select Send to transmit the SMS
9. Examine the test SMS message you dispatched

Ozeki Bulk SMS Modem setup (video tutorial)

The following short video shows a guided setup process for the Ozeki Bulk SMS Modem. It will show you all the essential steps you need, to proceed easily. Your only task is to follow the given instructions in order. By the end of this video, your Ozeki Bulk SMS Modem will be ready for mass SMS transmission directly to your target audience.

Obtain the parts needed to connect the modem successfully

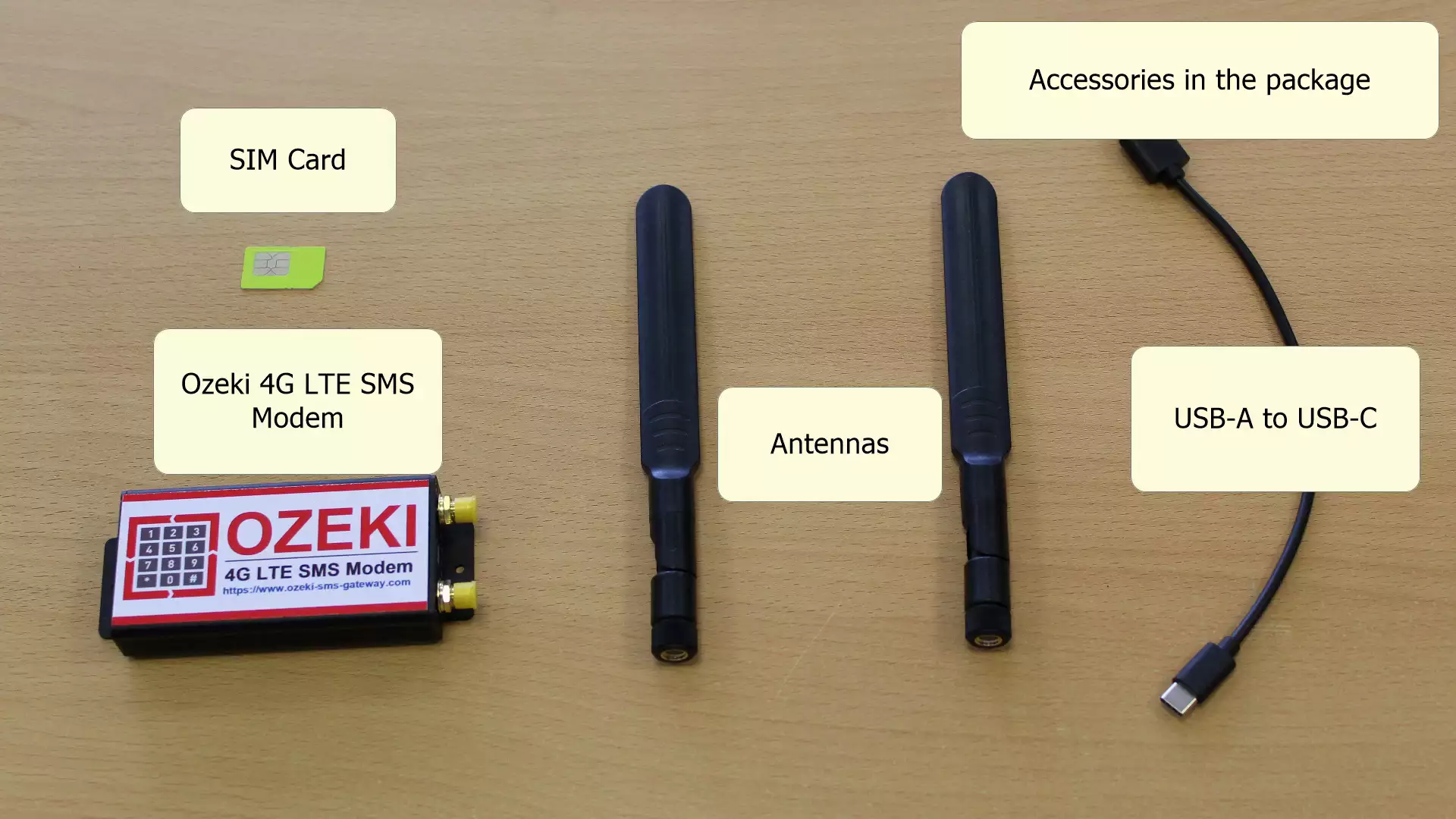

To connect the modem to your PC, you need a SIM card, an antenna, a USB cable and the modem itself. (All shown in Figure 2) Make sure that you have all the hardware devices you need to use the modem because every single detail is important.

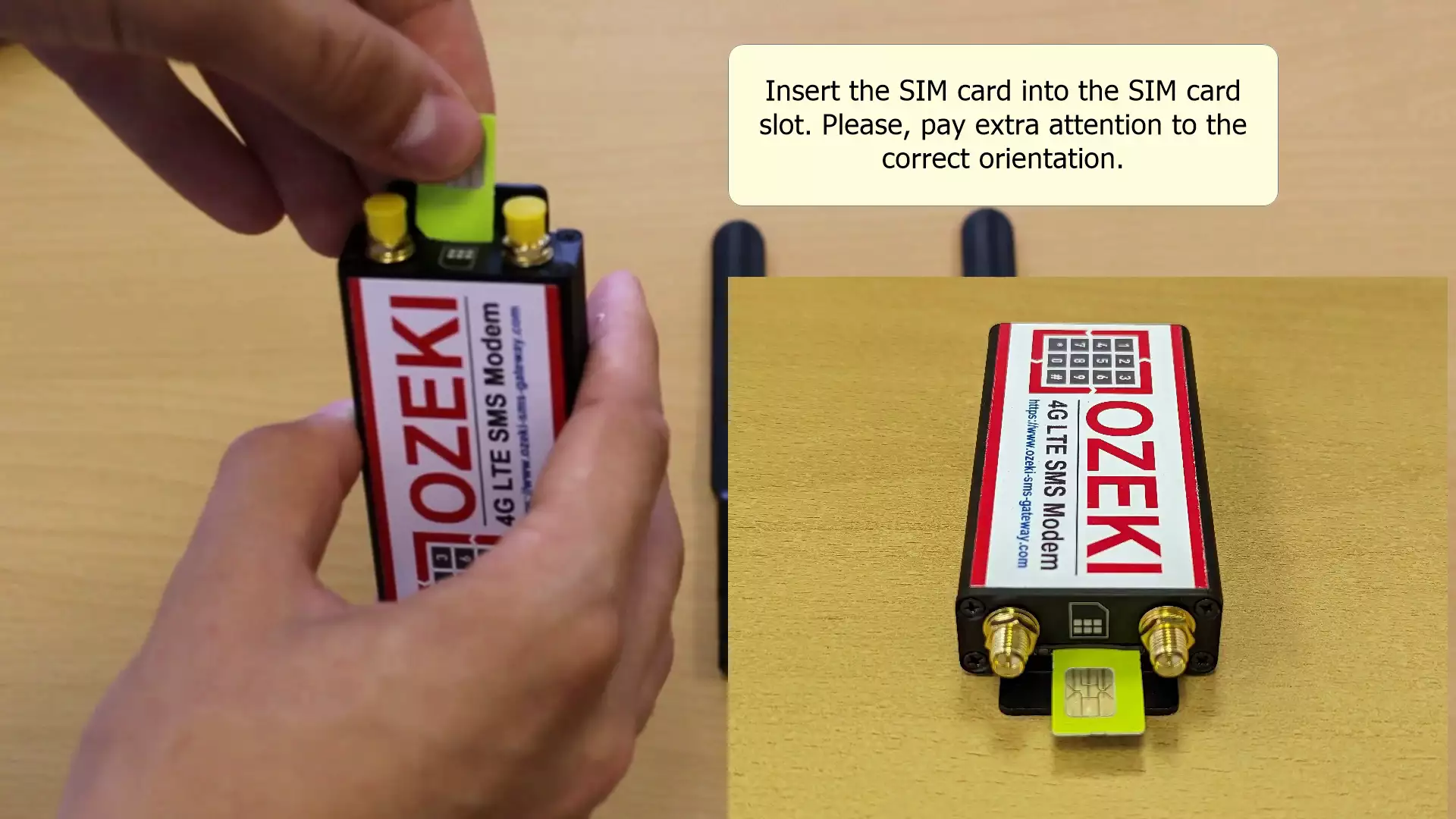

Place the SIM card into the modem

The first step that you have to perform is to plug the SIM card into the modem. This procedure is similar to inserting a SIM card to a mobile phone. The SIM card makes the connection between the modem device and the network. (Demonstrated in Figure 3)

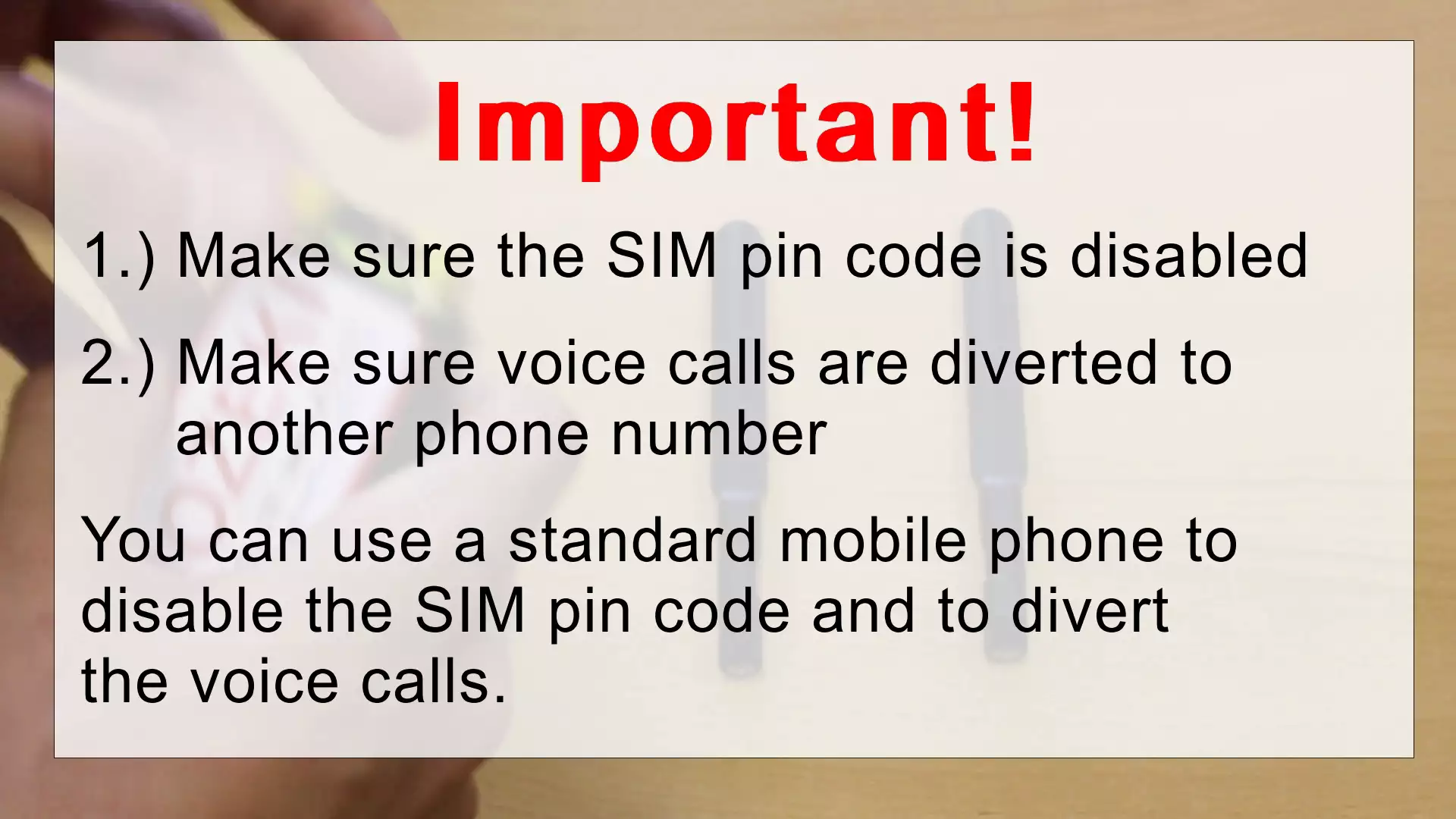

Important settings for SIM card

These settings are very important, and if you do not finish these, your SIM card won't work with Ozeki 4G Modem. You must disable your PIN code and redirect phone calls to another phone number. You can do these steps on a normal mobile phone. (Figure 4)

Attach the antenna to the USB modem

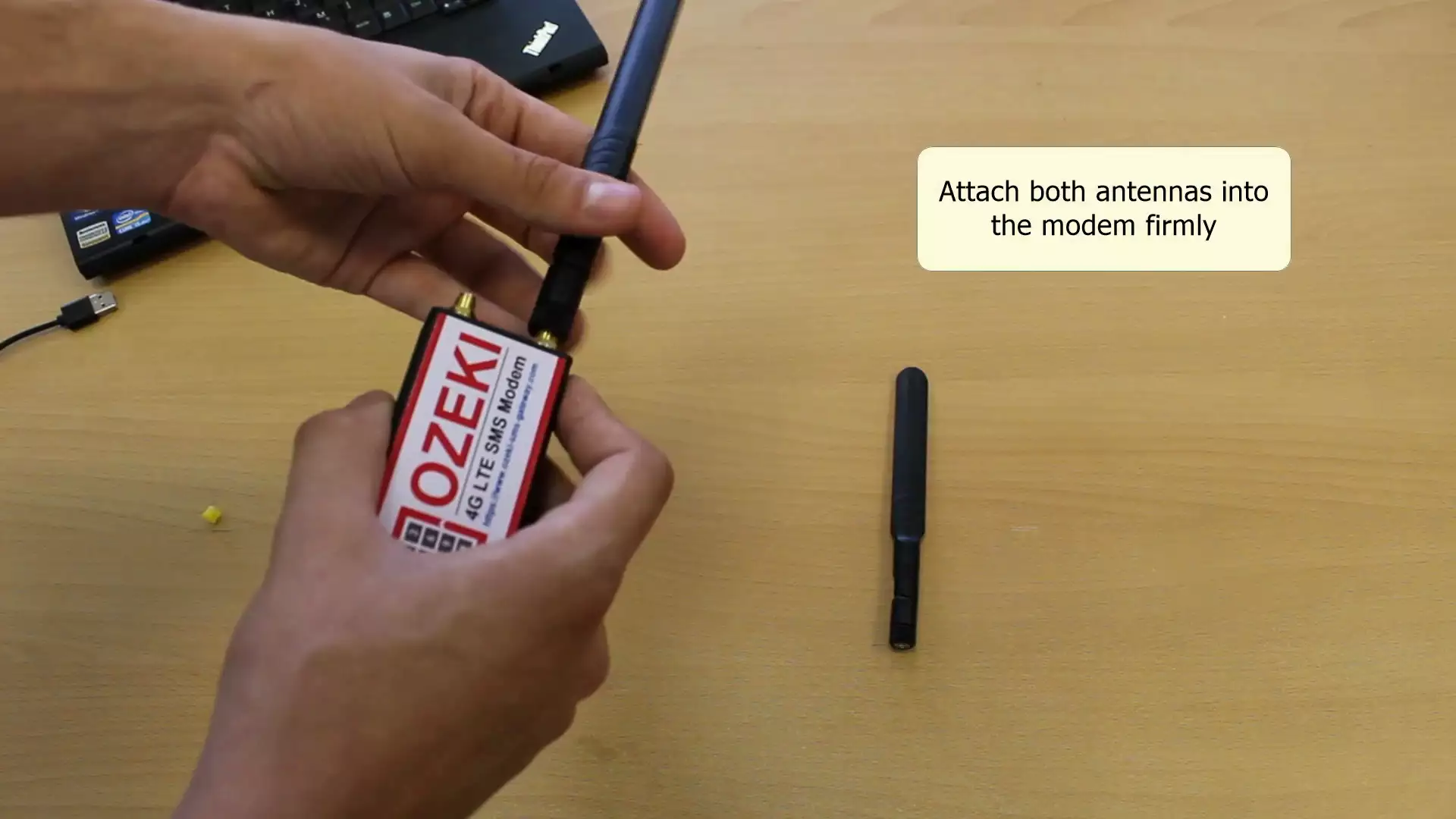

After inserting the SIM card, you have to connect the modem to its antennas. Make sure that it is connected correctly to get the best performance. The function of the antenna is to transmit and receive signals. (Shown in Figure 5)

Link the modem device to your PC using a USB cable

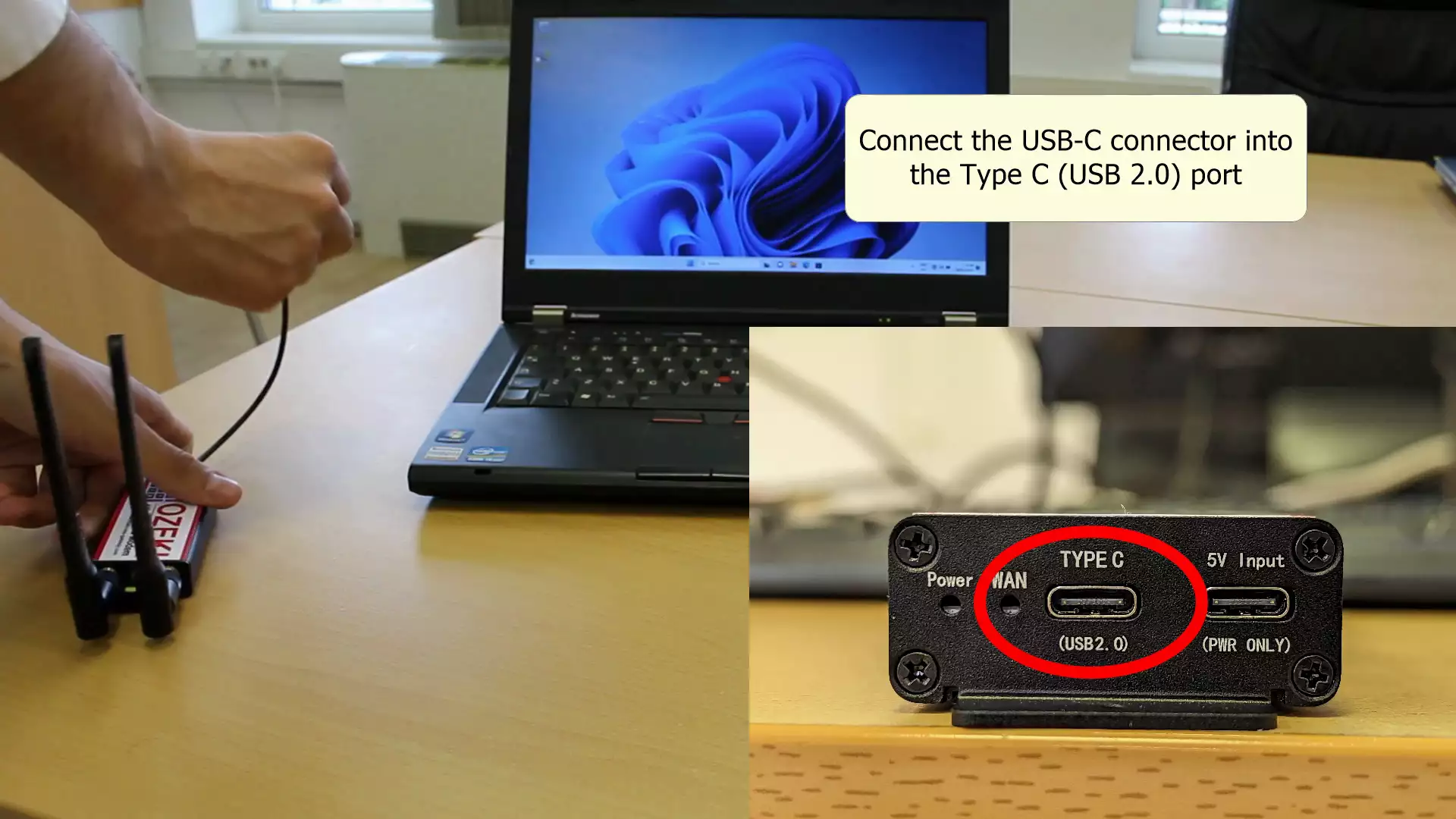

The next step is to insert the USB cable into the modem. This will connect the modem to your computer, so it is advised to use a perfectly working cable to avoid disconnections. (Figure 6)

Plug the USB cable into your computer

Lastly, the other end of the USB cable has to be connected to your PC. Plug it into the computer (As you can see on Figure 7)

Ozeki Bulk SMS Modem Software setup (Video tutorial)

In this video, you will learn how you can set up an Ozeki Bulk SMS Modem to send text messages (SMS) using a USB cable. For this setup, you need to have a connected Ozeki Bulk SMS Modem and Ozeki Software Platform installed. We will install the drivers and use Ozeki SMS Gateway to install a new SMS Modem to send our first test message. Once we send the message we check it on our recipient's device.

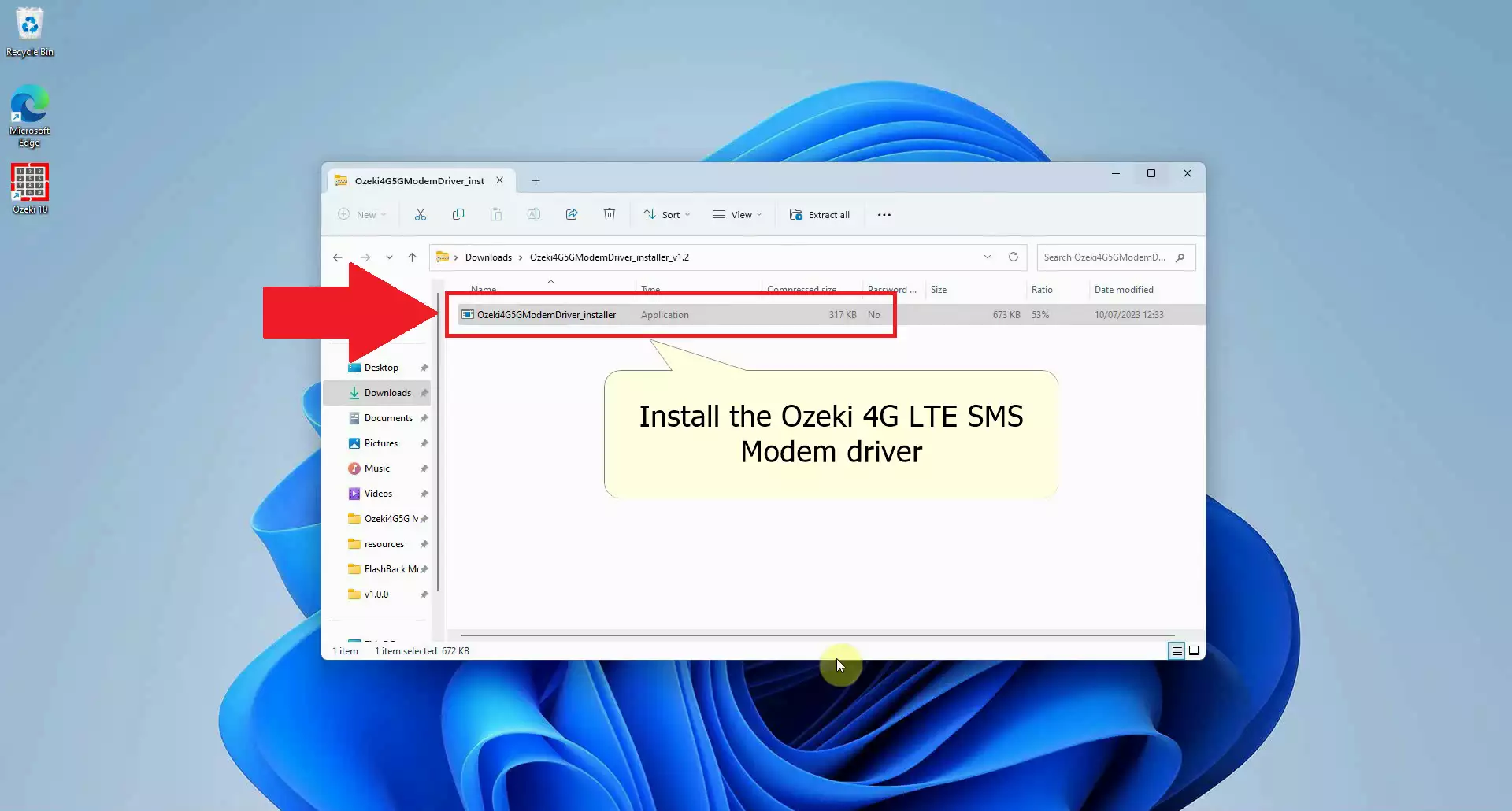

Install the Ozeki Modem Driver

To install the Modem Driver, open the folder containing the downloaded file. Extract the downloaded files into a new folder and locate the Driver Executable File. Double-click on it to start the installer, if prompted to allow Administrator rights, click on Allow. (Example can be seen on Figure 8)

Proceed with Installing

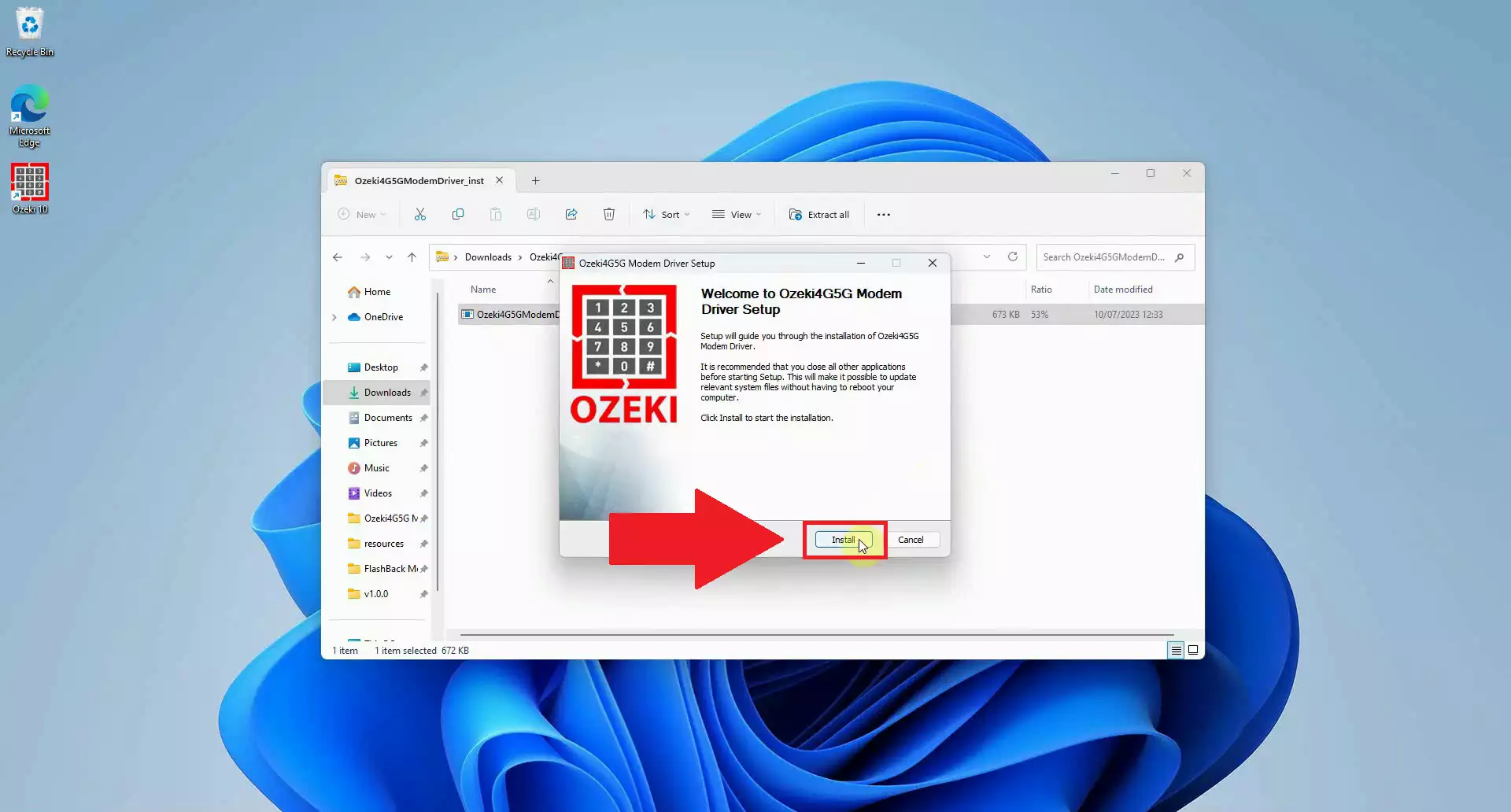

To start installing the driver, once the installer window opened, click on the Install button and wait for the process to finish. Once the installer has finished, click on the Finish button to end the setup process. (Visible on Figure 9)

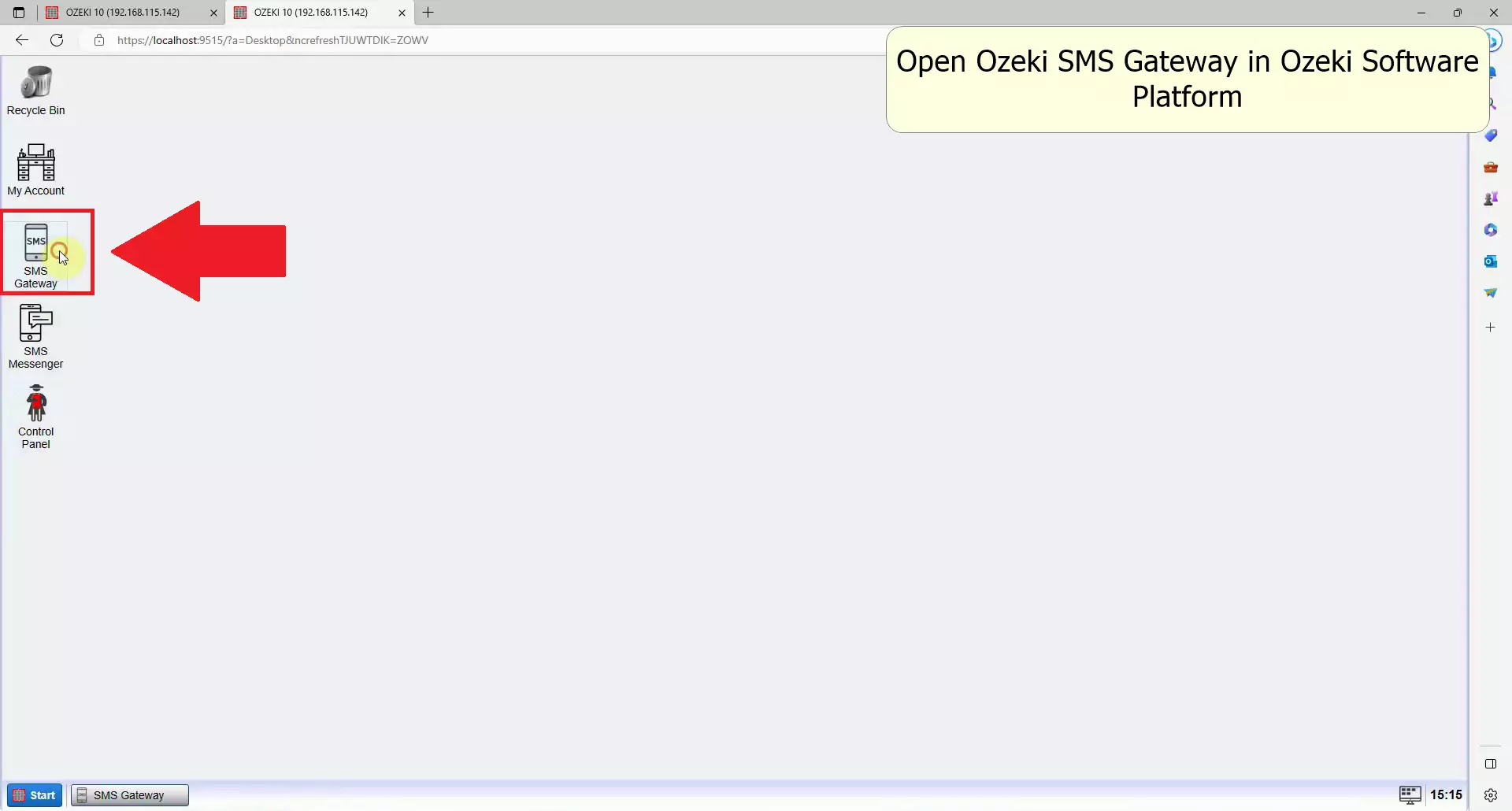

Open Ozeki SMS Gateway App in Ozeki Software Platform

To open Ozeki Software Platform, you will have to click on the search element in the Taskbar of Windows, type in Ozeki 10 and click on the application. The software should start in a few seconds Open the Ozeki SMS Gateway in the Ozeki Software Platform, you have a few default apps, usually placed on the left, open SMS Gateway, it has a phone icon with SMS written inside of it. This will open the SMS Gateway Application. (Figure 10)

If you have not yet downloaded Ozeki Software Platform, you can download it here: Ozeki Installer Download Page

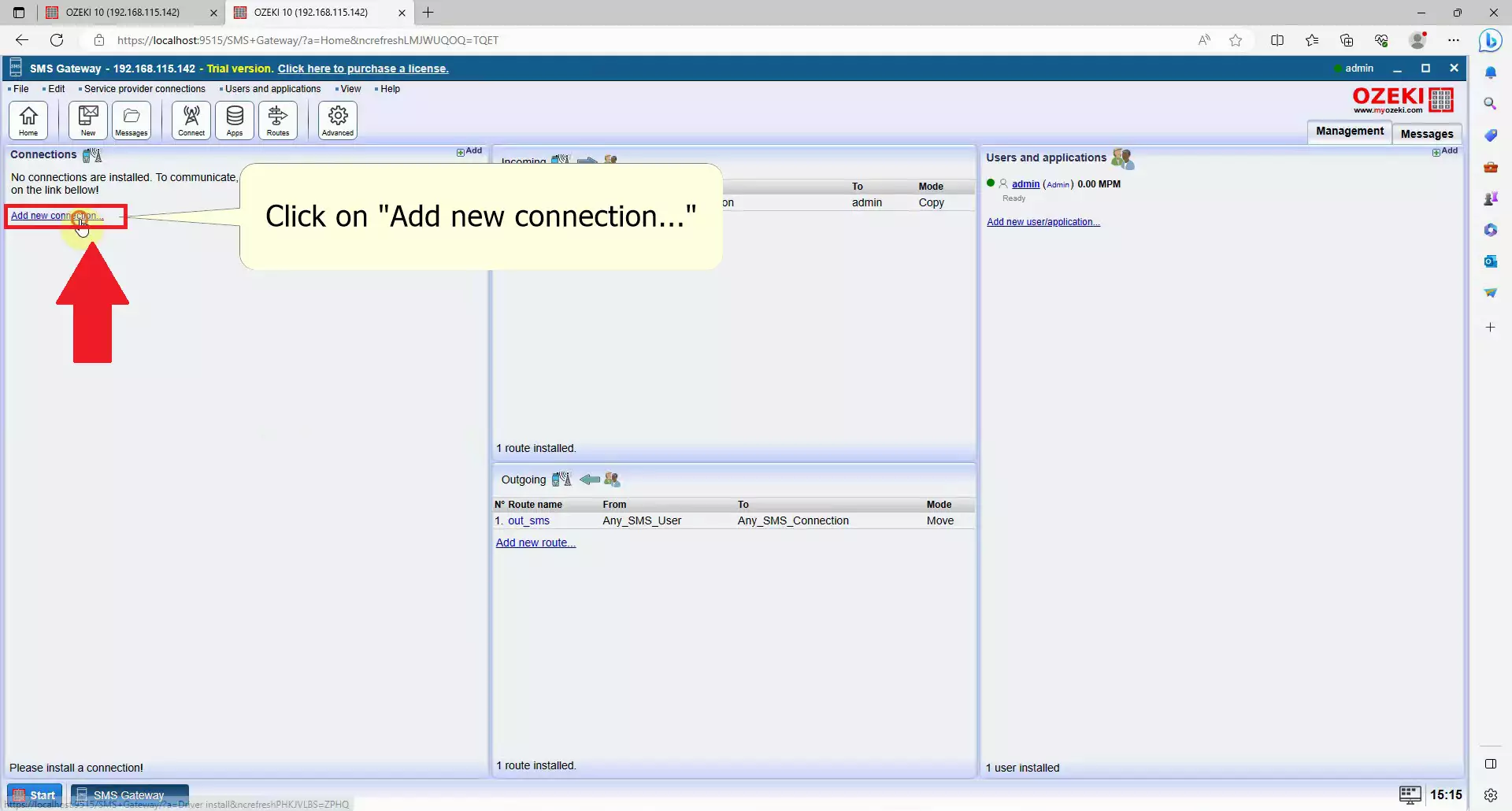

Add a new connection

To add a new connection in Ozeki SMS Gateway, find the add new connection link in the left Connections panel and click it. This will open the connection list page where you will be able to setup an SMS modem. (As you can see on Figure 11)

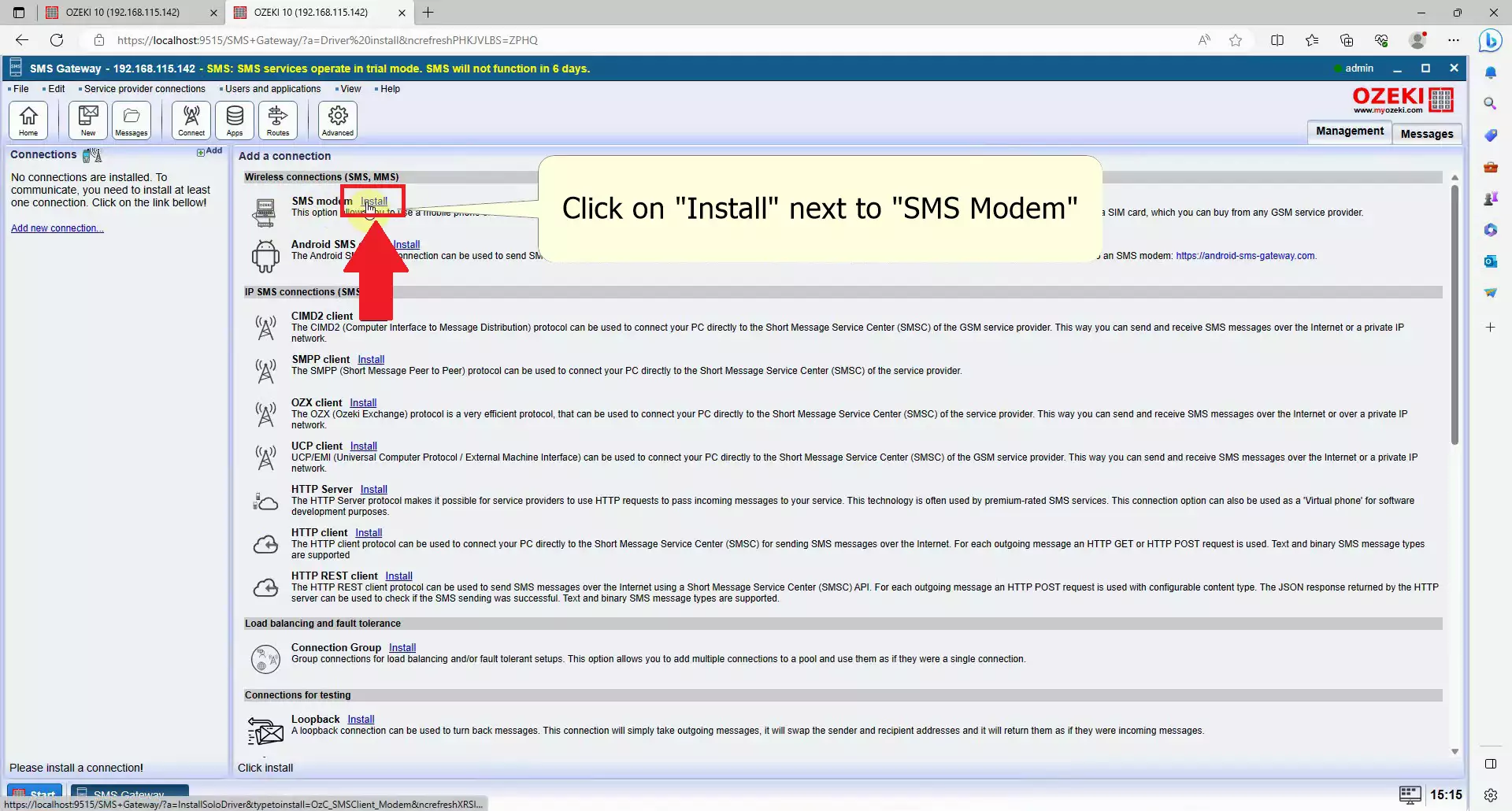

Install a new SMS Modem

The next window lists you all the connections that you can create in the SMS Gateway application. Now you have to look for the Wireless connections install list and select the SMS modem install item by clicking on the Install link. This will allow you to use the modem in the Ozeki SMS Gateway. (Demonstrated in Figure 12)

Select the Port

Under Serial port, you have to open the Port dropdown menu and look for Ozeki Modem Port, select it to start configuring the modem and send messages via 4G. (Figure 13)

Autodetect properties

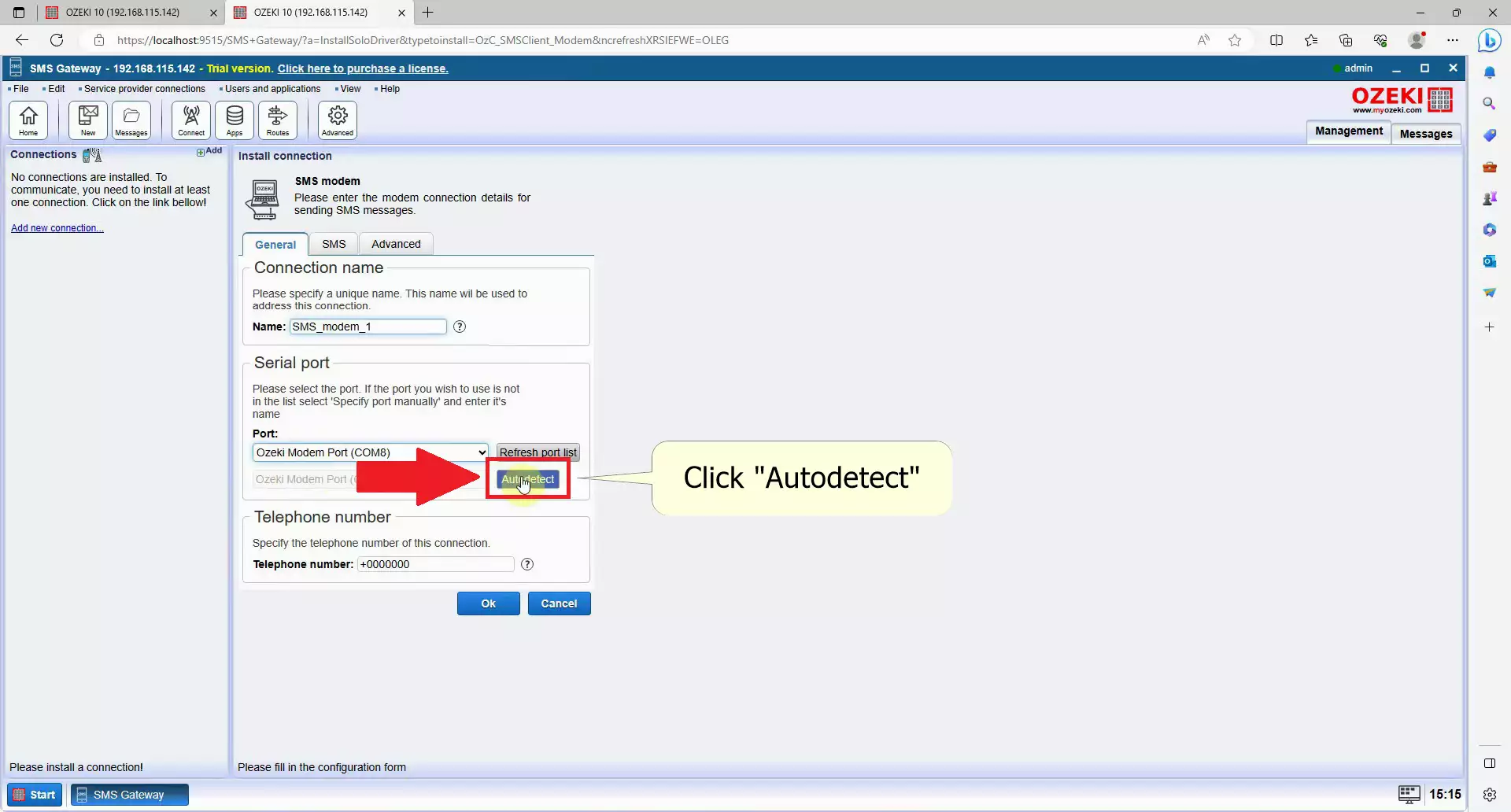

Next to the dropdown menu, find the blue button with the text Autodetect, click this button to automatically get all data from your SIM card like your phone number and configure it, it may take a few seconds. (Figure 14)

Check the information

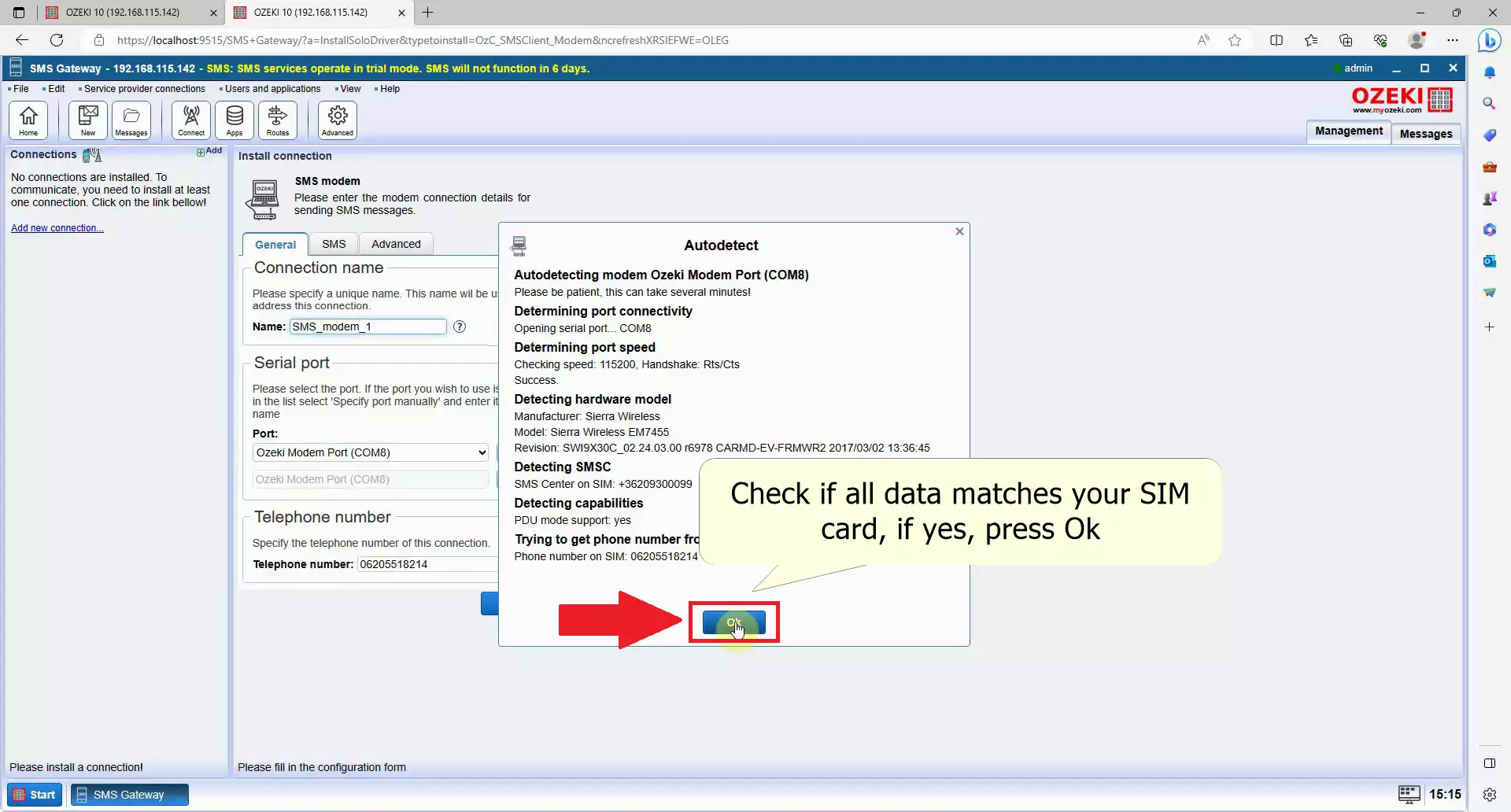

Check your details, a window will pop up named Autodetect, check if every detail matches to your SIM card, you can also see the modem details here. Click on the Ok button at the bottom when you are done checking everything. This will finish the Autodetect procedure and ready your modem for sending sms messages from your computer. (Figure 15)

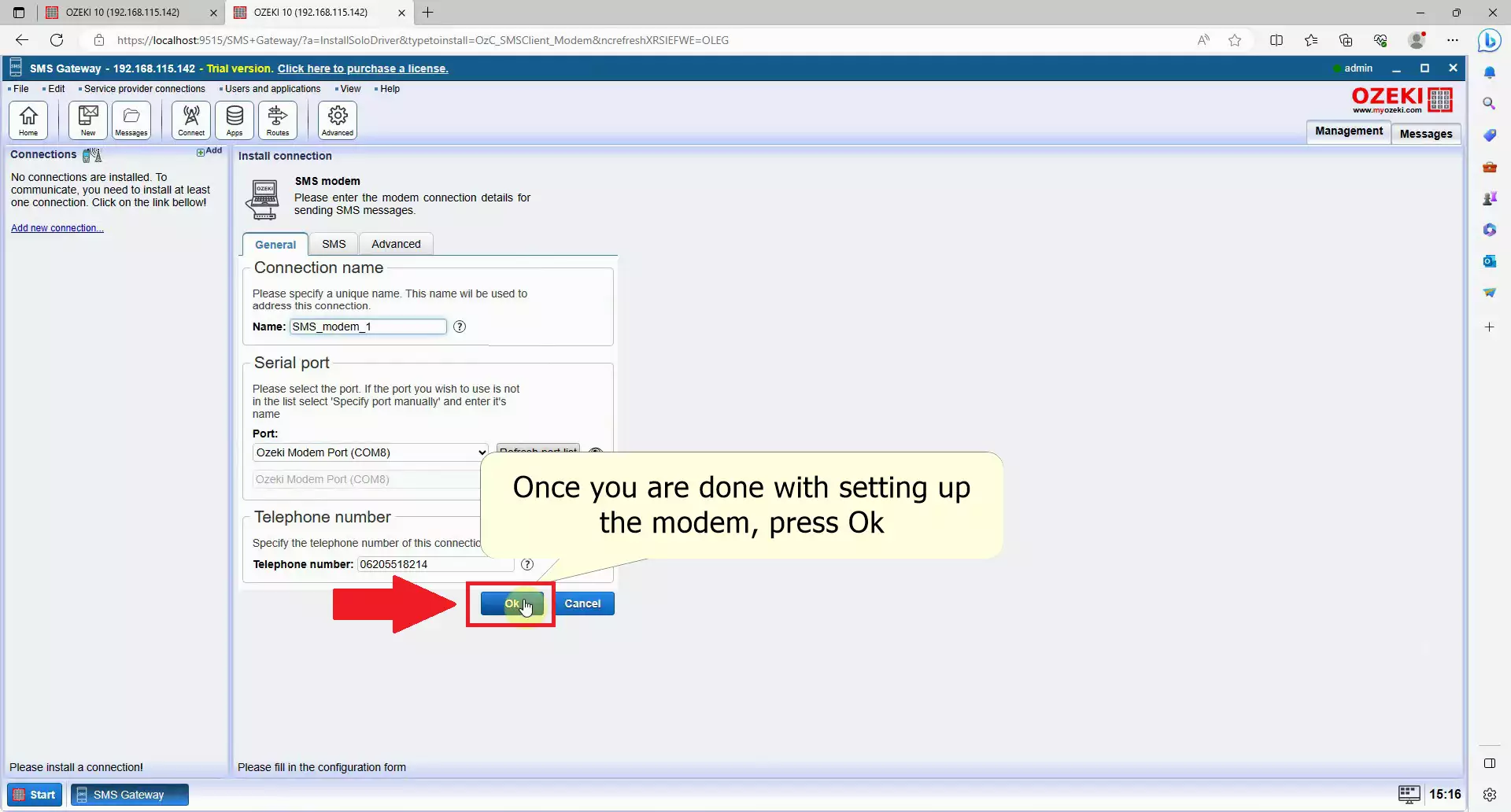

Finish setting up your modem

To finish setting up your modem, look for the blue Ok button at the bottom. If you wish to make other changes to your modem, you can do it now under the SMS tab or the Advanced tab, or you can come back to this tab after pressing Ok with the Configure tab later on. (Can be seen on Figure 16)

Enable SMS Modem Connection

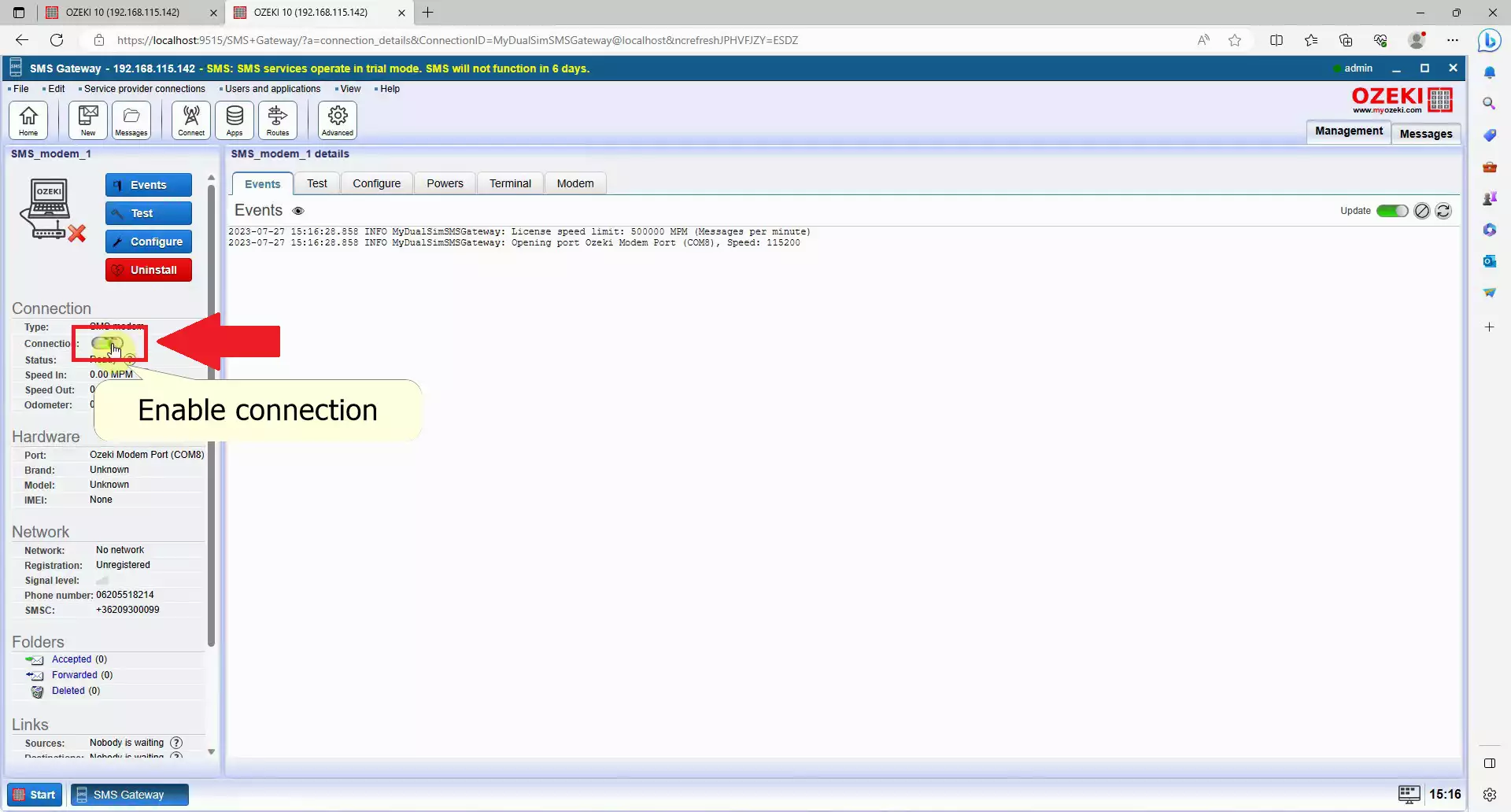

To enable SMS modem connection, find the Connection group on the left, you have to Enable the Connection switch, which is the second option in the group. Click on it to make it green and your modem will start connecting to your service provider. (Figure 17)

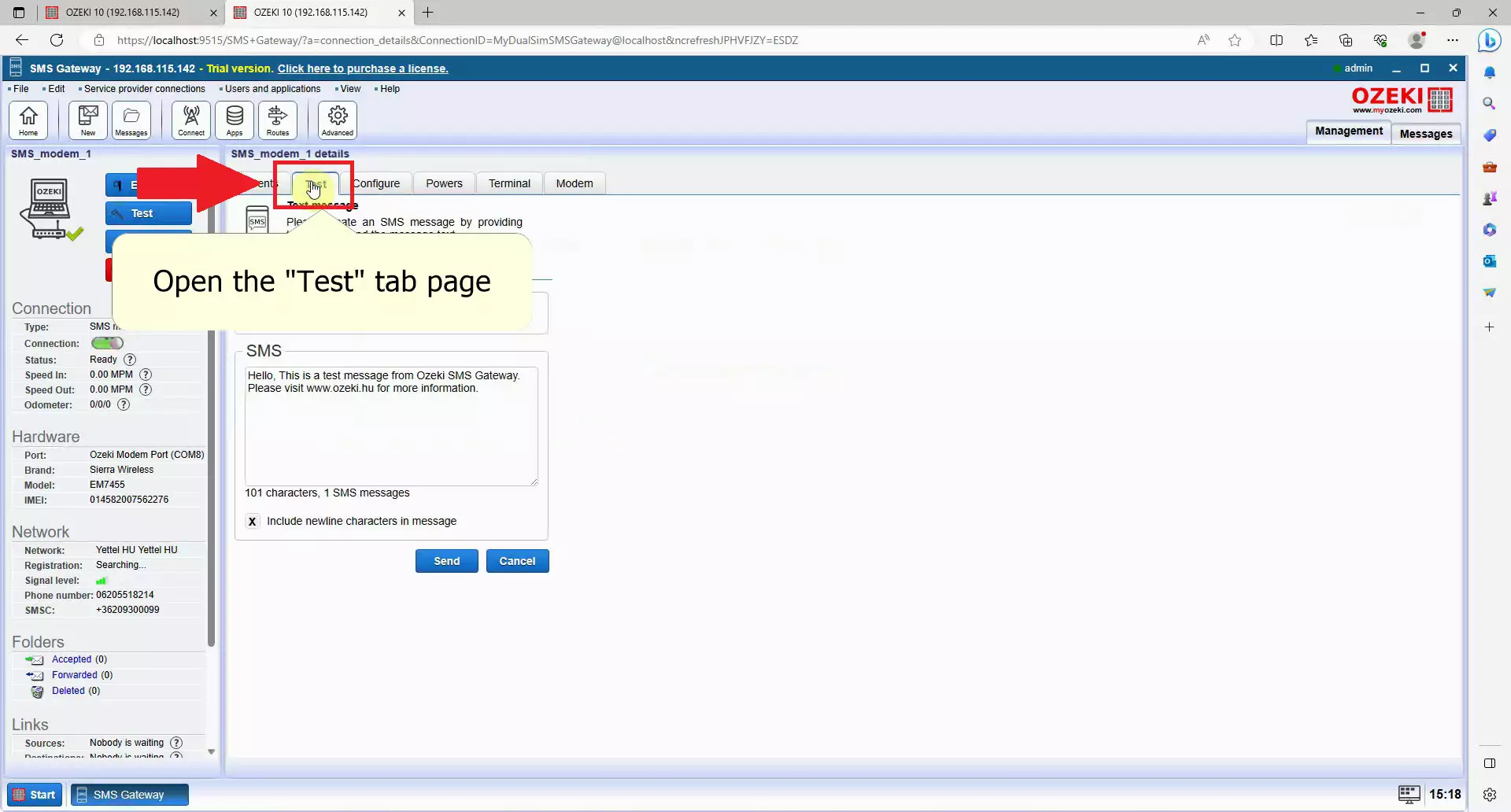

Navigate to the Test panel

Navigate to the navigation bar in the right panel and click Test to open the Test tab page and enter the Test SMS sending page. You can send test messages from here to anyone with custom content. (Seen on Figure 18)

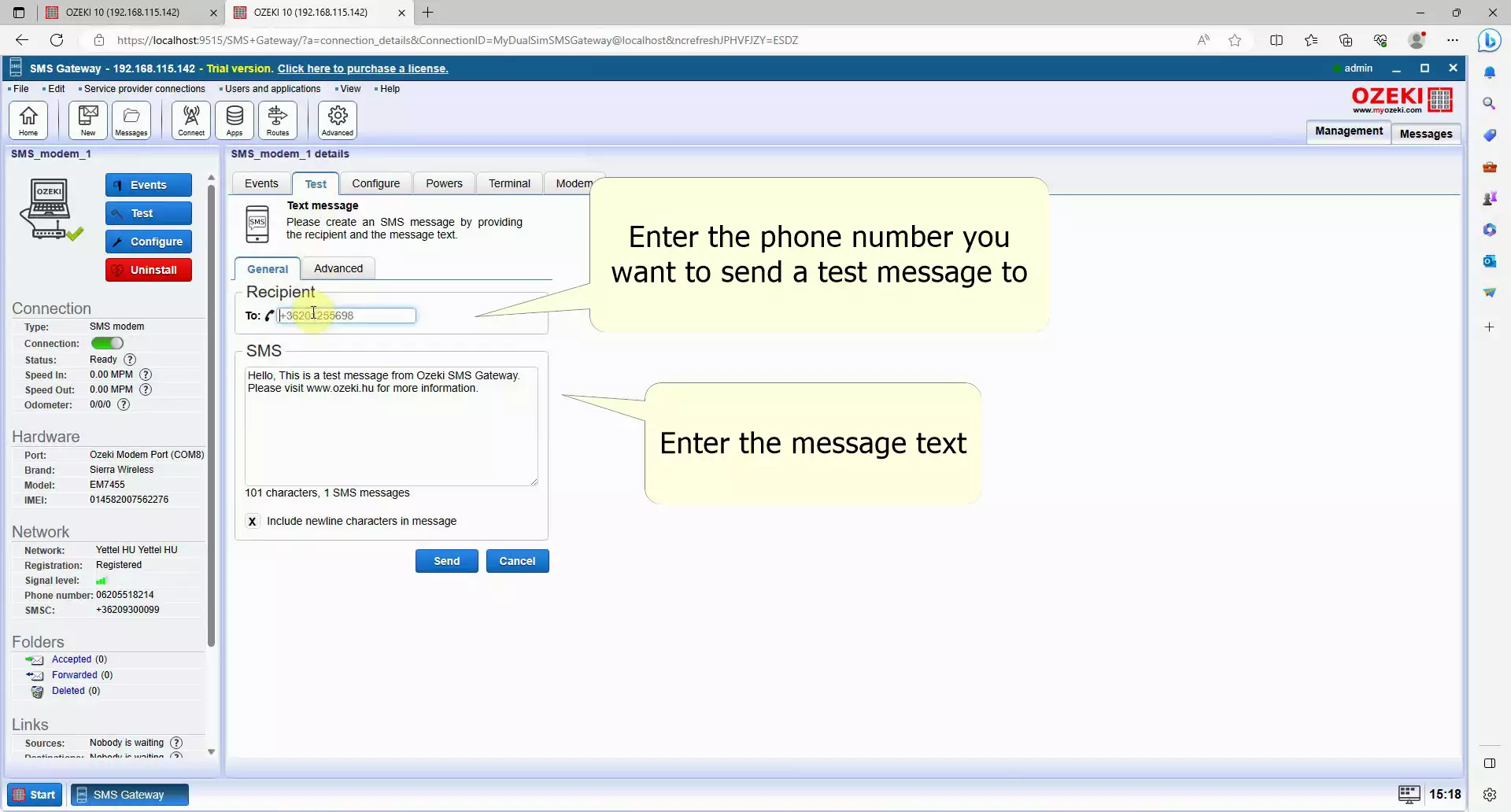

Fill the recipient's address and test message

Fill in the recipient's address and enter the test message, look for the To field in the Recipient group, you can enter the phone number there, and type into the SMS textfield what you want to send. You can write whatever you want here. (Figure 19)

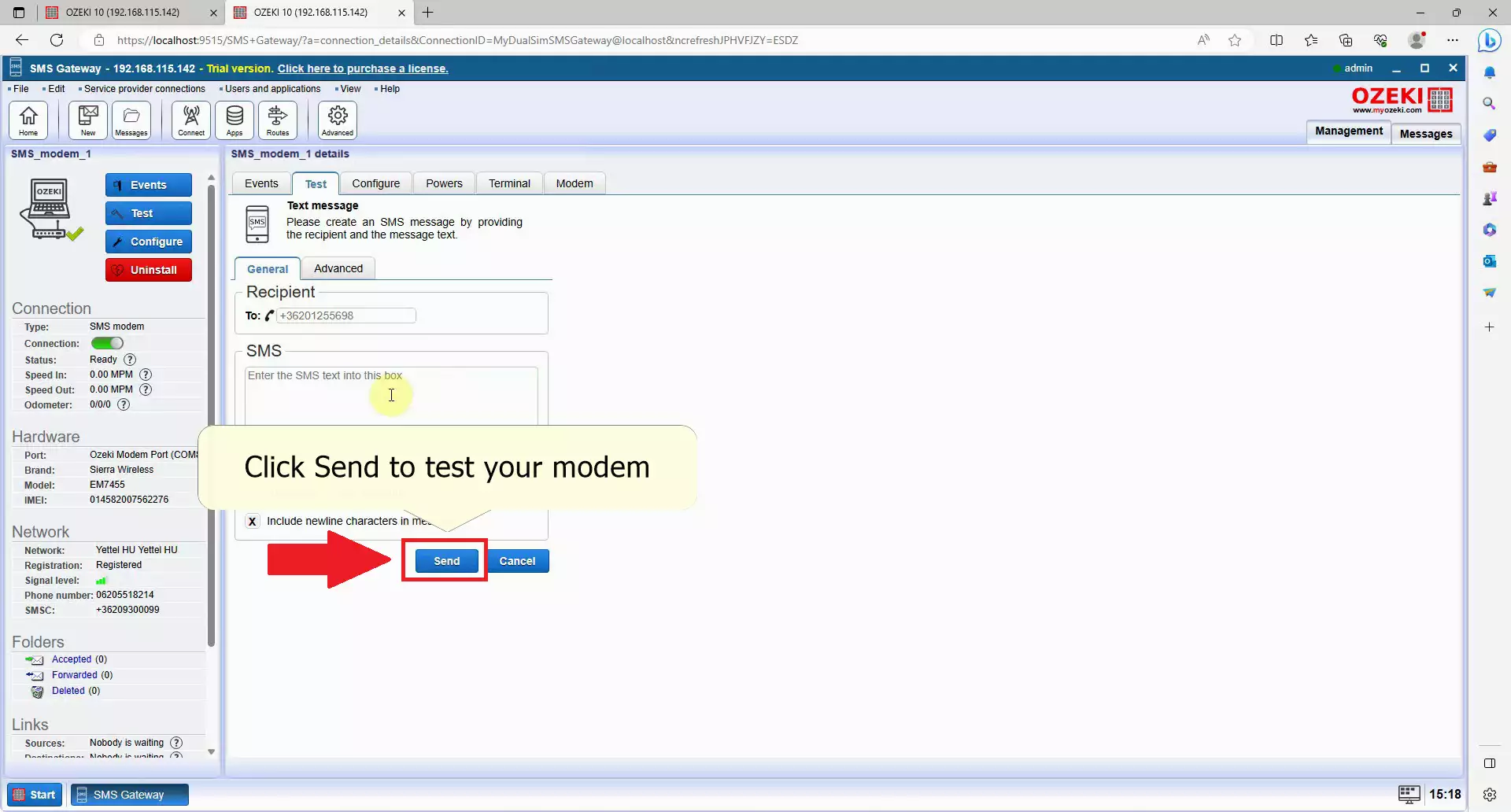

Send the SMS

Send the SMS if you are done, look for a blue Send button at the bottom of the screen. Click on the button to send the message and you will soon receive the SMS on the specified phone number. (Figure 20).

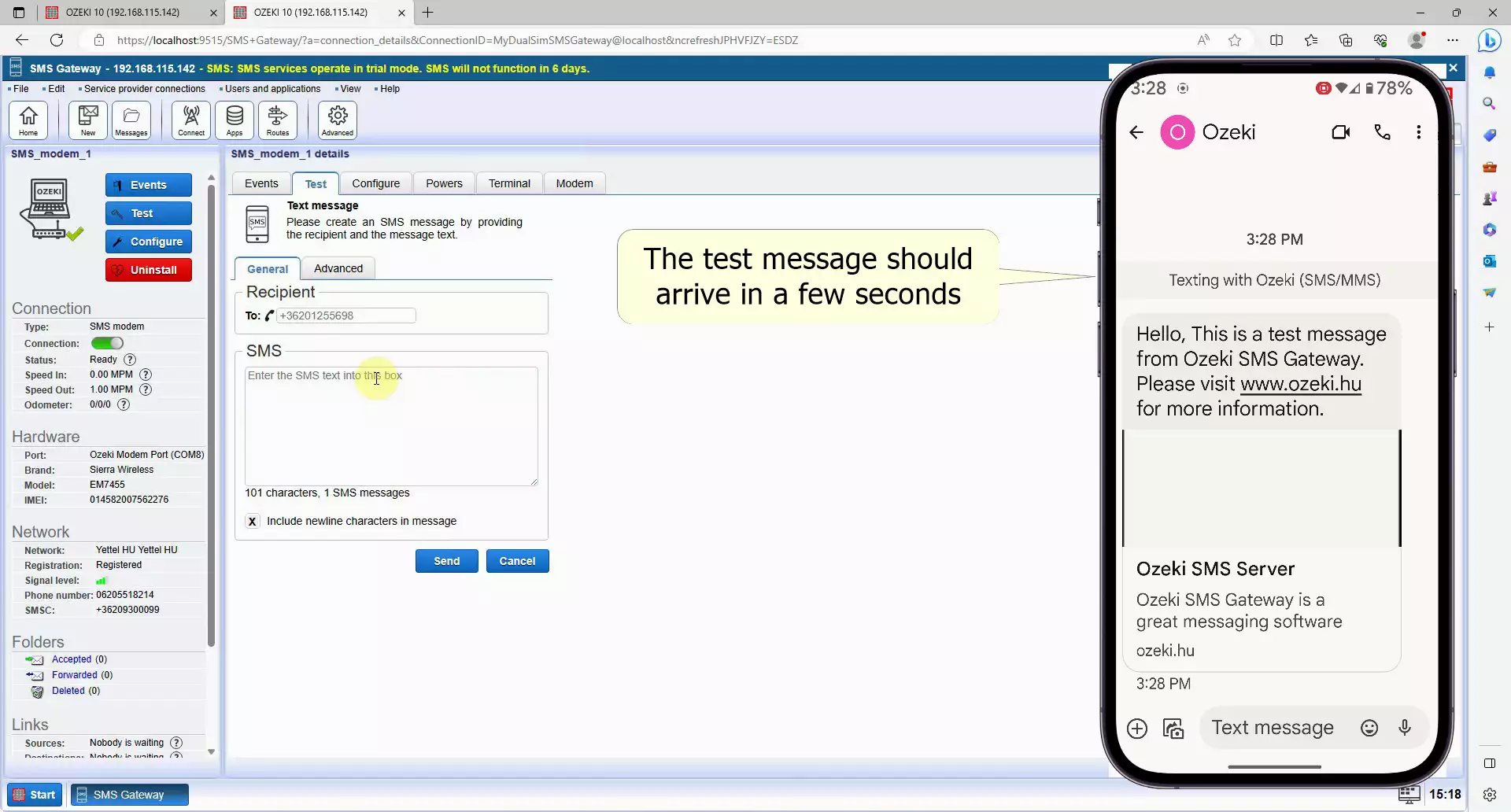

Check the test message

Check the test message on your mobile device, look for an application that handles SMS messages and open it, if you see your test message appear with the correct content, your SMS modem is working correctly. (Figure 21)

Summary

Ozeki Bulk Messenger stands out as a user-friendly solution for businesses or individuals seeking the perfect communication channels for mass messaging. The Ozeki Bulk SMS Modem is a hardware device, which ensures users reliably send high-value messages. The Ozeki SMS Gateway integrates with the modem without any obstacles. The Ozeki Bulk SMS Modem is the best choice for the quick transmission of bulk messages to your target audience.
